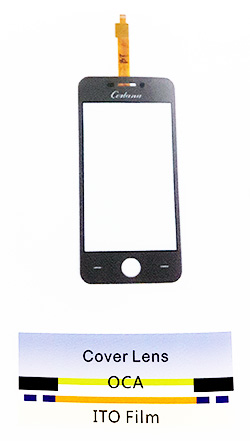

A capacitive touch screen solution with one layer of glass and one layer of film functional chip structure keeps the excellent performance of double layer film structure while minimizing the overall thickness.
It is widely used in watches, VR wearable and mobile phones.
Main performance：
Glass thickness：0.55mm、0.7mm、1.1mm；
Glass Types: Al Si, soda-lime；
film thickness：0.05mm、0.1mm、0.125mm；
Drop ball test：64g*60cm、110g*40cm；
Communication Interface：I2C、HID I2C；
Features | |||
结构 | Material thickness | Materials Brand | |
1 | GLASS | 0.55~1.1 | Asahi sudaline、Dragontrail、Corning |
2 | OCA | 0.125mm | LG/3M |
3 | Sensor | 0.125mm/0.1 | SKC/JSR/日东/玲寅 |
Technology | Yellow Light Technology (Single Layer and Multiple Points) and Printing Technology (Triangle Scheme) | ||
Scheme | Self-contained (triangular), single-layer and multi-point | ||
Advantage | Cheap price and thin | ||
Shortcoming | Self-contained single-point scheme, unable to achieve large-scale scheme | ||
Market | This year, the mainstream market will be GF single-layer multi-point scheme, using jumper technology. | ||
